TENSION-COMPRESSION TAPPING
Tension-Compression tap holders for
tapping cycles that are not synchronized
tapping cycles that are not synchronized
With a greater amount of tension and compression float, these tap holders allow you to produce gage perfect threads when the machine does not have a rigid or synchronized tapping cycle.
For use on CNC lathes or machining centers as well as conventional machines.
A releasable hard start keeps tapping depth accurate and consistent.

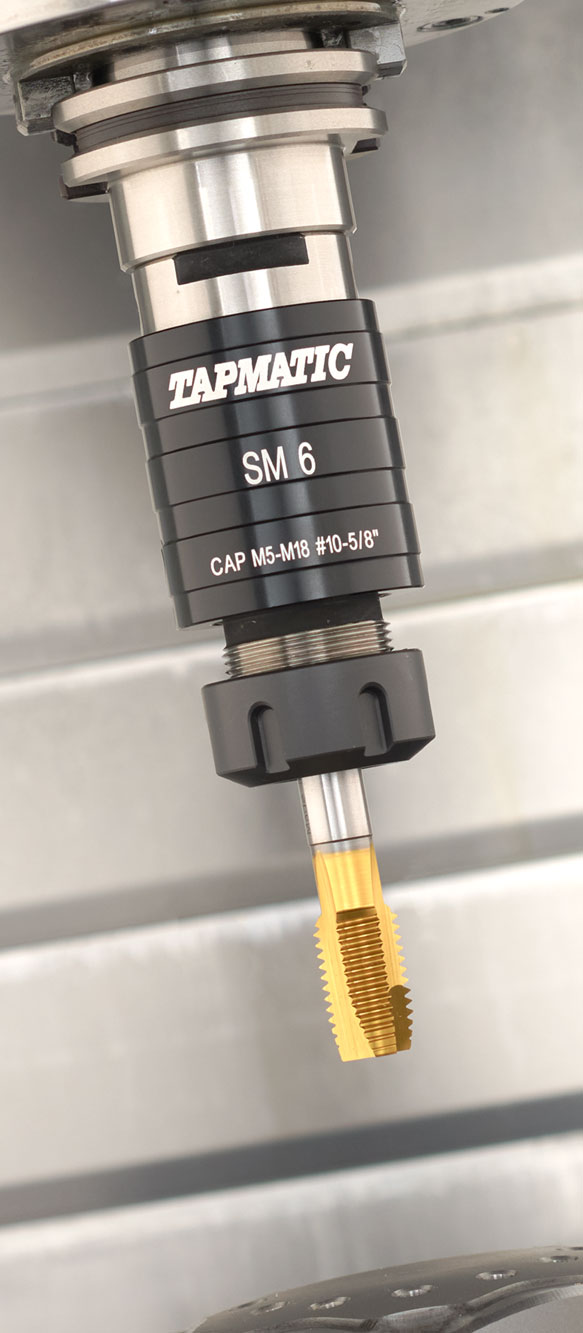

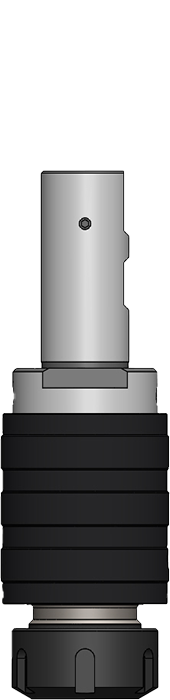

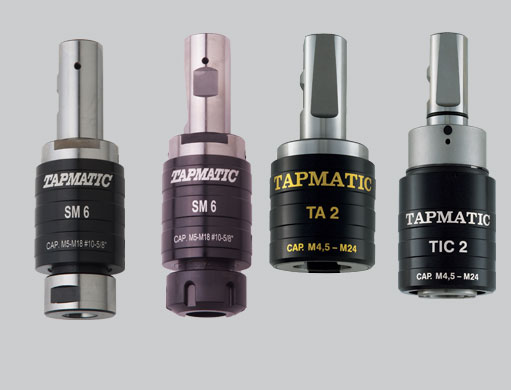

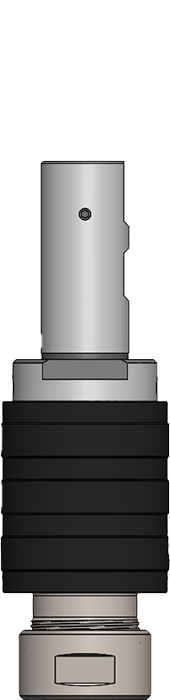

SM Models available with multi-range Rubber Flex collets or ER collets.
TA and TIC models come with a quick change chuck for fast tap change over without wrenches.
TA and TIC also include a safety feature that releases the quick change adapter if the tension float is accidentally exceeded.
TIC includes high pressure internal coolant up to 50 bar.
A wide range of options to fit your application.

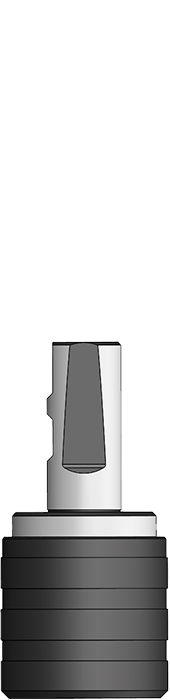

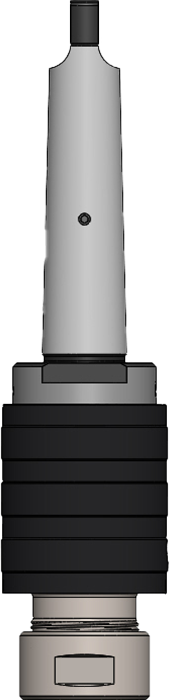

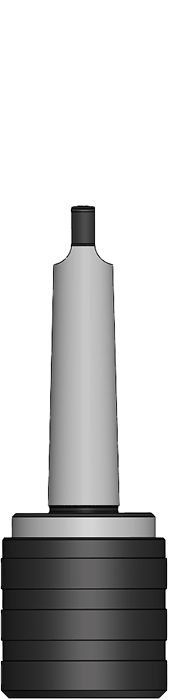

- SM and TA available with modular straight shank for use with CAT, BT, or SK steep taper shanks or Morse taper.

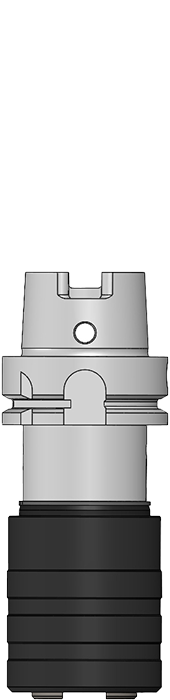

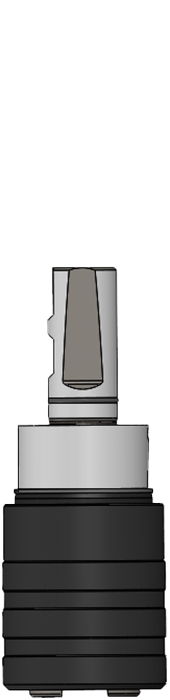

- TIC available with modular straight shank or HSK.
- TA and TIC use P type positive drive adapters or T type torque control adapters.
- For tap sizes from M1 up to M48.
