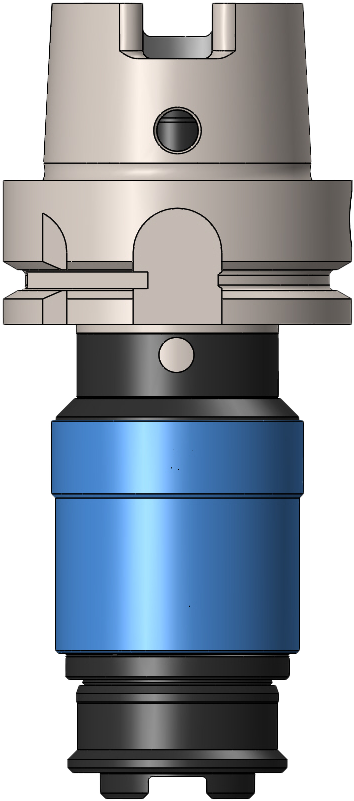

SynchroFlex® II Tap Holder with HSK Shank, Quick-Change, and Internal Coolant.

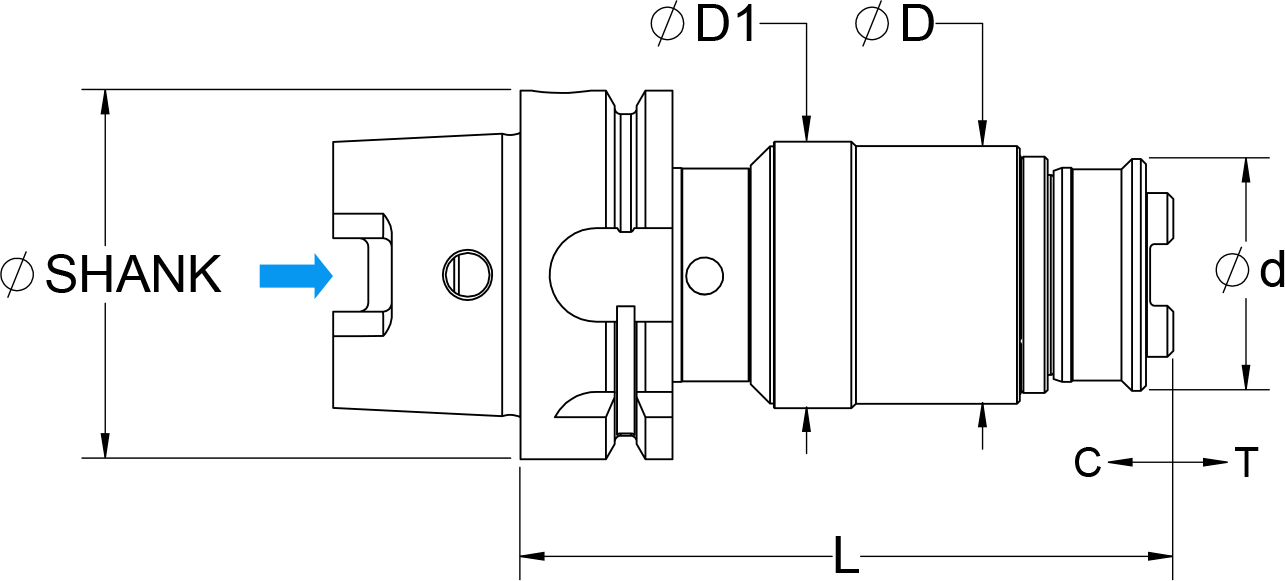

(Dimensions in mm)
|
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Description | Tap Sizes | SHANK | Adapter | D1 | D | d | L | T | C | Order Code | Quote |
| SFT II 50, HSK63A, QC | M4-M12 ● #8-1/2" | HSK63A | Nr.1 | 36.3 | 34.6 | 35 | 95 | 0.5 | 0.5 | 4150H63QC | |
| SFT II 50, HSK80A, QC | M4-M12 ● #8-1/2" | HSK80A | Nr.1 | 36.3 | 34.6 | 35 | 100 | 0.5 | 0.5 | 4150H80QC | |
| SFT II 50, HSK100A, QC | M4-M12 ● #8-1/2" | HSK100A | Nr.1 | 36.3 | 34.6 | 35 | 102 | 0.5 | 0.5 | 4150H100QC | |
| SFT II 75, HSK63A, QC | M8-M16 ● 1/4"-5/8" | HSK63A | Nr.1 | 45.6 | 44 | 40 | 112 | 0.5 | 0.5 | 4175H63QC | |
| SFT II 75, HSK80A, QC | M8-M16 ● 1/4"-5/8" | HSK80A | Nr.1 | 45.6 | 44 | 40 | 115 | 0.5 | 0.5 | 4175H80QC | |
| SFT II 75, HSK100A, QC | M8-M16 ● 1/4"-5/8" | HSK100A | Nr.1 | 45.6 | 44 | 40 | 117 | 0.5 | 0.5 | 4175H100QC | |
