drill press and milling machines.
Since 1952 Tapmatic has manufactured the worlds most popular line of auto-reversing tapping attachments. Through experience and innovation we have continued to improve our original product. The RxII and Drill-n-Tap are the new generation and include everything we have leaned about tapping on drill press machines. These compact tools are also ideal for tapping on automated pneumatic, hydraulic and electric spindles.

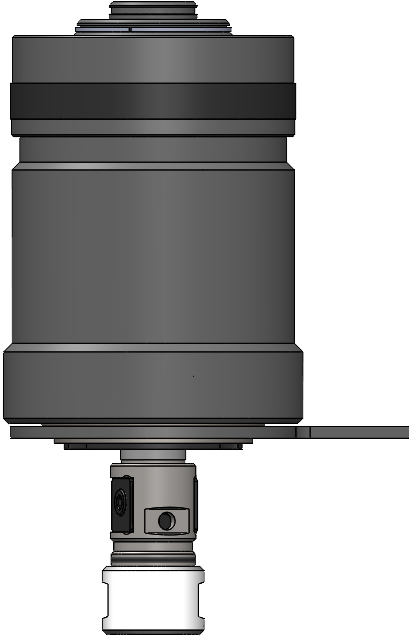

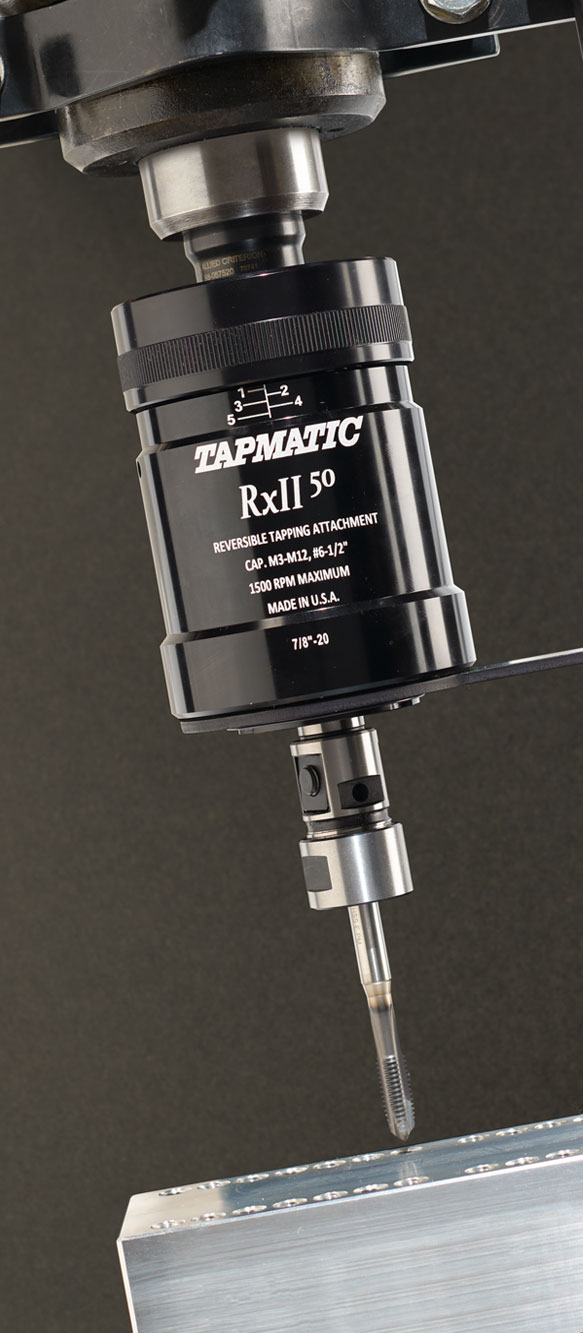

RxII and 90xII models include an adjustable torque control to prevent tap breakage, a 1.75 times speed increase on reverse for faster production, and rubber flex collet chucks, only two collets are needed to cover a full range of tap sizes. Benefits include longer tap life, accurate tapping depth control, better thread quality and consistent trouble free performance.

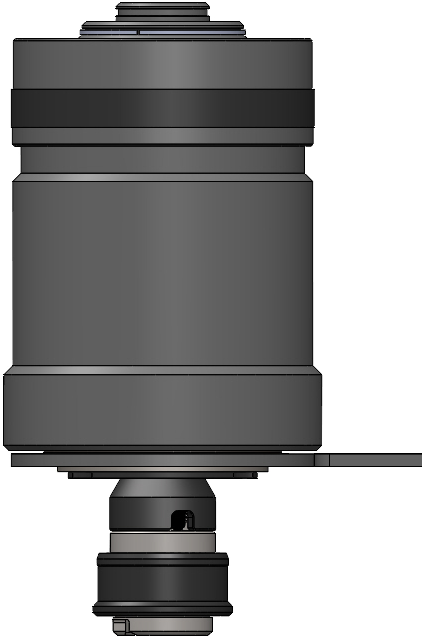

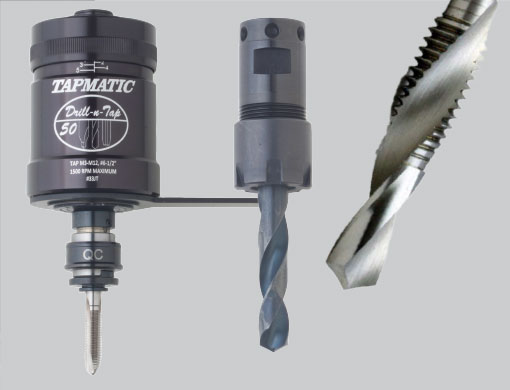

The Drill-n-Tap with quick change, allows you to spot drill, drill and tap without the need to change back and forth between the tapping head and a drill chuck. Also perfect for use with combination drill-tap cutting tools.
- Unique design for improved concentricity.
- Quick change for rapidly changing the cutting tool.
- Reduced cycle time for tapping thanks to 1.75 to 1 reverse speed.
- Pre-selective torque control prevents tap breakage.
- Adjustable self-feed and hard start for accurate tapping depth control.
- Great for combination drill-tap cutting tools.
