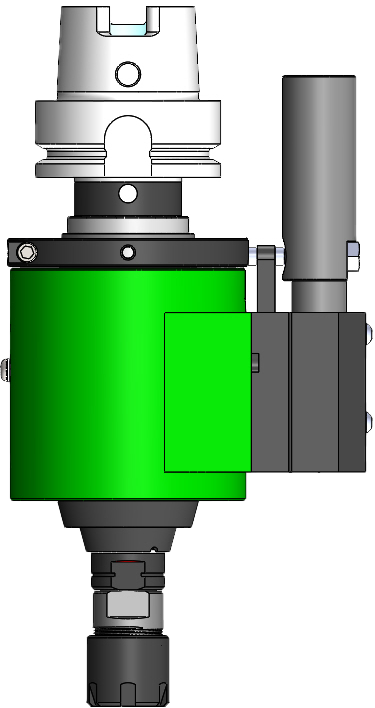

RCT50 Tapping Head with HSK Shank with Internal Coolant.
RCT50 Tapping Head with HSK Shank with Internal Coolant.
RCT50 Tapping Head with HSK Shank with Internal Coolant.
(Dimensions in mm)
DescriptionTap SizesSHANKColletsNut TypeDdL1L2MAX RPMOrder Code Quote
RCT50, HSK63A, ER16 M4.5-M12 ● #10-1/2" HSK63A ER16 MINI SEAL DISK 80 22 194 136 2500 0550H63161
RCT50, HSK80A, ER16 M4.5-M12 ● #10-1/2" HSK80A ER16 MINI SEAL DISK 80 22 199 141 2500 0550H80161
RCT50, HSK100A, ER16 M4.5-M12 ● #10-1/2" HSK100A ER16 MINI SEAL DISK 80 22 201 143 2500 0550H100161
RCT50, HSK63A, ER20 M4.5-M12 ● #10-1/2" HSK63A ER20 MINI SEAL DISK 80 28 206 136 2300 0550H63201
RCT50, HSK80A, ER20 M4.5-M12 ● #10-1/2" HSK80A ER20 MINI SEAL DISK 80 28 211 141 2300 0550H80201
RCT50, HSK100A, ER20 M4.5-M12 ● #10-1/2" HSK100A ER20 MINI SEAL DISK 80 28 213 143 2300 0550H100201
RCT50 Stop Arm Assembly
CENTER DISTANCEL3Order Code Quote
55 13 0550551
65 23 0550651
80 38 0550801
110 68 05501101
SELECT COLLETS

SELECT COLLETS

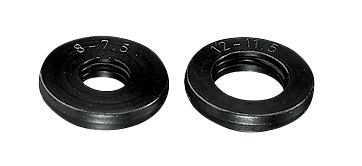

SELECT SEAL DISKS

SELECT SEAL DISKS

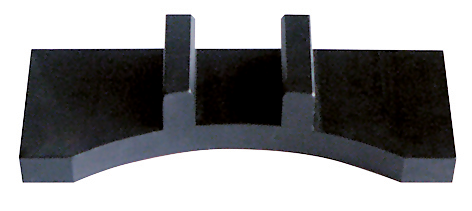

SELECT STOP BLOCK

SELECT STOP BLOCK


RDT25 Tapping Head with HSK Shank without Internal Coolant
(Dimensions in mm)
DescriptionTap SizesSHANKColletsNut TypeDdL1L2MAX RPMOrder Code Quote
RDT25, HSK63A, ER11 M2-M6 ● #4-1/4" HSK63A ER11 STANDARD 57 19 145 118 4000 3925H6311
RDT25, HSK80A, ER11 M2-M6 ● #4-1/4" HSK80A ER11 STANDARD 57 19 150 123 4000 3925H8011
RDT25, HSK100A, ER11 M2-M6 ● #4-1/4" HSK100A ER11 STANDARD 57 19 152 125 4000 3925H10011
Stop Arm Assembly for RDT25
CENTER DISTANCEL3Order Code Quote
55 13 3925551
65 23 3925651
80 38 3925801
110 68 39251101
SELECT COLLETS

SELECT COLLETS
SELECT STOP BLOCK

SELECT STOP BLOCK
