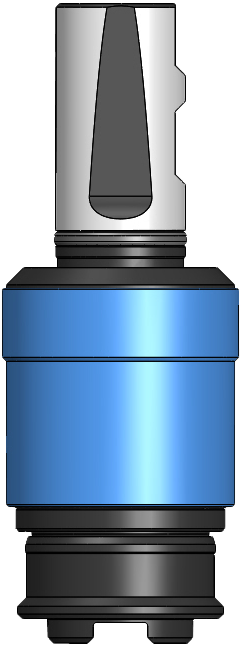

SynchroFlex® II Tap Holder with Modular Straight Shank, Quick-Change, and Internal Coolant.
(Dimensions in mm)
|
||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Description | Tap Sizes | SHANK | Adapter | D1 | D | d | L | I | T | C | Order Code | Quote |
| SFT II 50, 20mm, QC | M4-M12 ● #8-1/2" | 20mm | Nr.1 | 36.3 | 34.6 | 35 | 56 | 50.8 | 0.5 | 0.5 | 415020QC | |
| SFT II 50, 25mm, QC | M4-M12 ● #8-1/2" | 25mm | Nr.1 | 36.3 | 34.6 | 35 | 56 | 50.8 | 0.5 | 0.5 | 415025QC | |
| SFT II 50, 1", QC | M4-M12 ● #8-1/2" | 1" | Nr.1 | 36.3 | 34.6 | 35 | 56 | 50.8 | 0.5 | 0.5 | 41501QC | |
| SFT II 75, 25mm, QC | M8-M16 ● 1/4"-5/8" | 25mm | Nr.1 | 45.6 | 44 | 40 | 72 | 50.8 | 0.5 | 0.5 | 417525QC | |
| SFT II 75, 1", QC | M8-M16 ● 1/4"-5/8" | 1" | Nr.1 | 45.6 | 44 | 40 | 72 | 50.8 | 0.5 | 0.5 | 41751QC | |
