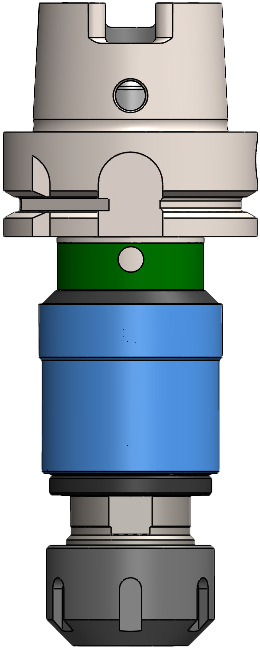

SynchroFlex® II Tap Holder with HSK SHANK, ER Collet, and MQL, Minimum Quantity Lubrication.

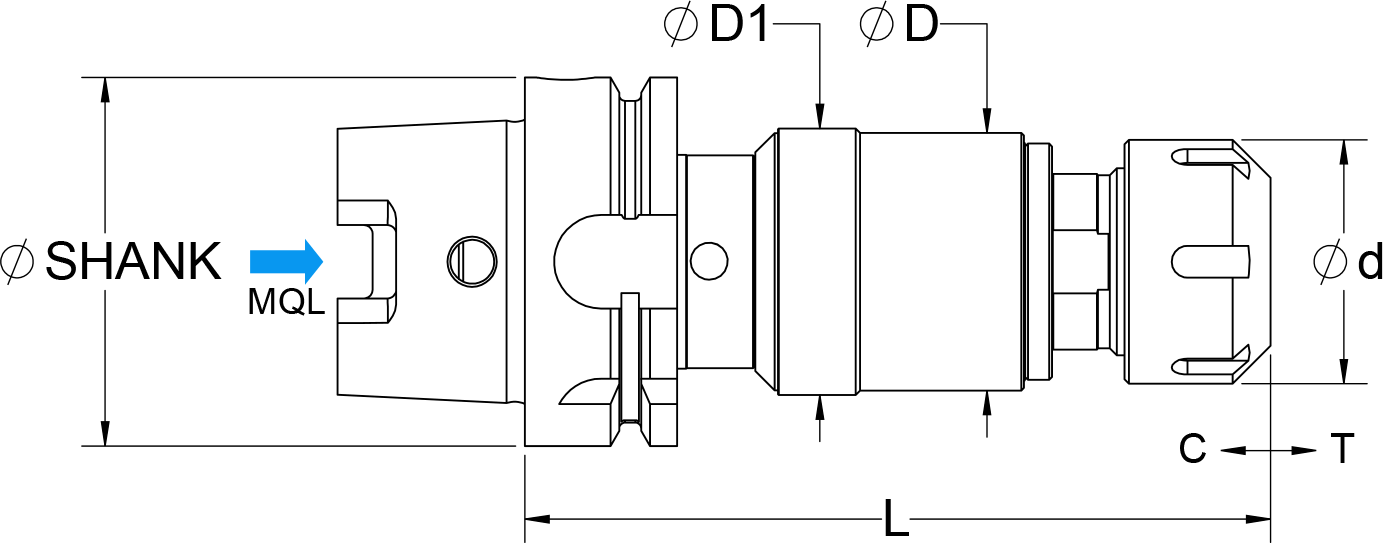

(Dimensions in mm)
|
||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Description | Tap Sizes | SHANK | Collets | Nut Type | D1 | D | d | L | T | C | Order Code | Quote |
| SFT II 50, HSK63A, ER20 | M4-12 ● #8-1/2" | HSK63A | ER20 | SEAL NUT | 36.3 | 34.6 | 34 | 108 | 0.5 | 0.5 | 4150H6320M | |
| SFT II 50, HSK80A, ER20 | M4-12 ● #8-1/2" | HSK80A | ER20 | SEAL NUT | 36.3 | 34.6 | 34 | 113 | 0.5 | 0.5 | 4150H8020M | |
| SFT II 50, HSK100A, ER20 | M4-12 ● #8-1/2" | HSK100A | ER20 | SEAL NUT | 36.3 | 34.6 | 34 | 115 | 0.5 | 0.5 | 4150H10020M | |
| SFT II 75, HSK63A, ER25 | M8-M20 ● 1/4"-3/4" | HSK63A | ER25 | SEAL NUT | 45.6 | 44 | 42 | 128 | 0.5 | 0.5 | 4175H6325M | |
| SFT II 75, HSK80A, ER25 | M8-M20 ● 1/4"-3/4" | HSK80A | ER25 | SEAL NUT | 45.6 | 44 | 42 | 131 | 0.5 | 0.5 | 4175H8025M | |
| SFT II 75, HSK100A, ER25 | M8-M20 ● 1/4"-3/4" | HSK100A | ER25 | SEAL NUT | 45.6 | 44 | 42 | 133 | 0.5 | 0.5 | 4175H10025M | |
|

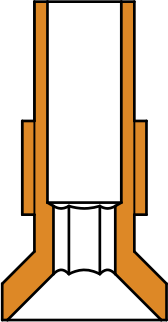

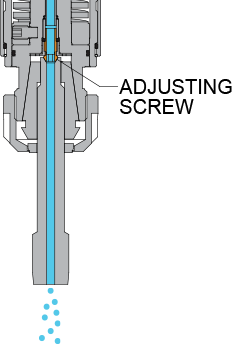

MQL Adjusting Screws,
For Taps with External Center |
|||
|---|---|---|---|
| Description | TAP SHANK DIAMETER | Order Code | Quote |
| SCREW FOR SFT50II | 6mm | 810836 | |
| SCREW FOR SFT50II | 7mm | 810836 | |
| SCREW FOR SFT50II | 8mm | 810838 | |
| SCREW FOR SFT50II | 9mm | 810838 | |
| SCREW FOR SFT50II | 10mm | 8108310 | |
| SCREW FOR SFT75II | 8mm | 811838 | |
| SCREW FOR SFT75II | 9mm | 811838 | |
| SCREW FOR SFT75II | 10mm | 8108310 | |
| SCREW FOR SFT75II | 11mm | 8118311 | |
| SCREW FOR SFT75II | 12mm | 8118311 | |
| SCREW FOR SFT75II | 13mm | 8118311 | |
| SCREW FOR SFT75II | 14mm | 8118311 | |
| SCREW FOR SFT75II | 15mm | 8118311 | |
| SCREW FOR SFT75II | 16mm | 8118311 | |
|

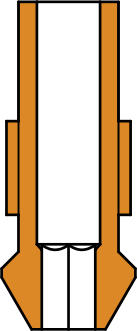

MQL Adjusting Screws,
For Taps with Internal Center |
|||
|---|---|---|---|
| Description | TAP SHANK DIAMETER | Order Code | Quote |
| SCREW FOR SFT50II | 6mm | 810836IN | |
| SCREW FOR SFT50II | 7mm | 810836IN | |
| SCREW FOR SFT50II | 8mm | 810838IN | |
| SCREW FOR SFT50II | 9mm | 810838IN | |
| SCREW FOR SFT50II | 10mm | 8108310IN | |
| SCREW FOR SFT75II | 8mm | 811838IN | |
| SCREW FOR SFT75II | 9mm | 811838IN | |
| SCREW FOR SFT75II | 10mm | 8108310IN | |
| SCREW FOR SFT75II | 11mm | 8118311IN | |
| SCREW FOR SFT75II | 12mm | 8118311IN | |
| SCREW FOR SFT75II | 13mm | 8118311IN | |
| SCREW FOR SFT75II | 14mm | 8118311IN | |
| SCREW FOR SFT75II | 15mm | 8118311IN | |
| SCREW FOR SFT75II | 16mm | 8118311IN | |
