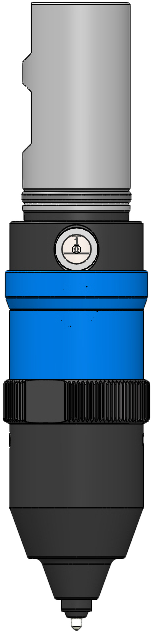

ScribeWriter Force II, Marking Tool for Work Piece Scribing
Dimensions are in mm
|
||||||||
|---|---|---|---|---|---|---|---|---|
| Description | SHANK | Stylus Point | D | L | l | C | Order Code | Quote |
| ScribeWriter, 16mm, 90° | 16mm | 90° | 32 | 95 | 50.8 | 5 | 57616 | |
| ScribeWriter, 16mm, 60° | 16mm | 60° | 32 | 95 | 50.8 | 5 | 57616-60 | |
| ScriberWriter, 16mm, Ball Point | 16mm | BALL | 32 | 95 | 50.8 | 5 | 57616-B | |
| ScribeWriter, 20mm, 90° | 20mm | 90° | 32 | 95 | 50.8 | 5 | 57620 | |
| ScribeWriter, 20mm, 60° | 20mm | 60° | 32 | 95 | 50.8 | 5 | 57620-60 | |
| ScriberWriter, 20mm, Ball Point | 20mm | BALL | 32 | 95 | 50.8 | 5 | 57620-B | |
| ScribeWriter, 25mm, 90° | 25mm | 90° | 32 | 95 | 50.8 | 5 | 57625 | |
| ScribeWriter, 25mm, 60° | 25mm | 60° | 32 | 95 | 50.8 | 5 | 57625-60 | |
| ScriberWriter, 25mm, Ball Point | 25mm | BALL | 32 | 95 | 50.8 | 5 | 57625-B | |
| ScribeWriter, 1", 90° | 1" | 90° | 32 | 95 | 50.8 | 5 | 57601 | |
| ScribeWriter, 1", 60° | 1" | 60° | 32 | 95 | 50.8 | 5 | 57601-60 | |
| ScriberWriter, 1", Ball Point | 1" | BALL | 32 | 95 | 50.8 | 5 | 57601-B | |
