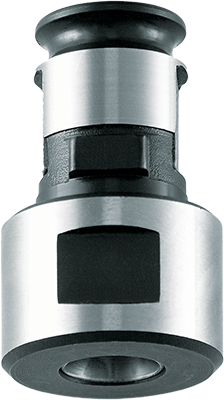

Quick-Change Collet Chuck Adapters for use with Rubber Flex Collets (RF)
(Dimensions in mm)
|
||||||||
|---|---|---|---|---|---|---|---|---|
| Description | Adapter Size | For Collet Size | Nut Type | d | D | L | Order Code | Quote |
| TF0 Adapter | Nr.0 | M1.4-M7 - #0 - 1/4" | 21600, 21700 | 19 | 13 | 19 | 29350 | |
| TF1 Adapter | Nr.1 | M3-M12 - #6-1/2" | 22100, 22200 | 27 | 19 | 19 | 29351 | |
| TF2 Adapter | Nr.2 | M5-M18 - #10-3/4" | 24100, 24500 | 37 | 31 | 25 | 29352 | |
| TF3 Adapter | Nr.3 | M10-M30 - 1/2"- 1 1/8" | 26100, 26200 | 57 | 48 | 32 | 29353 | |
