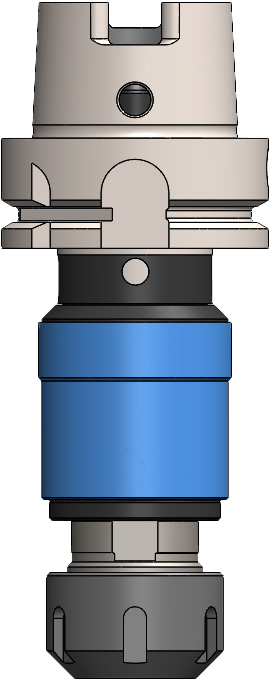

SynchroFlex® II Tap Holder with HSK Shank, ER Collet, and Internal Coolant.

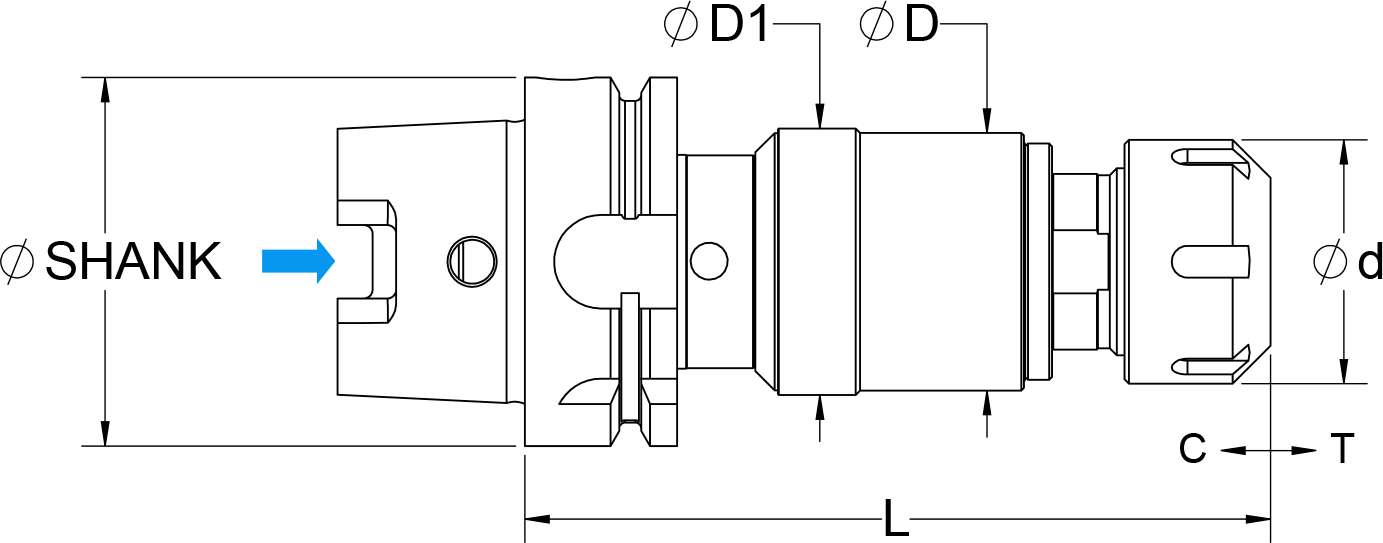

(Dimensions in mm)
|
||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Description | Tap Sizes | SHANK | Collets | Nut Type | D1 | D | d | L | T | C | Order Code | Quote |
| SFT II 50, HSK63A, ER20 | M4-M12 ● #8-1/2" | HSK63A | ER20 | SEAL DISK | 36.3 | 34.6 | 34 | 108 | 0.5 | 0.5 | 4150H6320 | |
| SFT II 50, HSK80A, ER20 | M4-M12 ● #8-1/2" | HSK80A | ER20 | SEAL DISK | 36.3 | 34.6 | 34 | 113 | 0.5 | 0.5 | 4150H8020 | |
| SFT II 50, HSK100A, ER20 | M4-M12 ● #8-1/2" | HSK100A | ER20 | SEAL DISK | 36.3 | 34.6 | 34 | 115 | 0.5 | 0.5 | 4150H10020 | |
| SFT II 75, HSK63A, ER25 | M8-M20 ● 1/4"-3/4" | HSK63A | ER25 | SEAL DISK | 45.6 | 44 | 42 | 128 | 0.5 | 0.5 | 4175H6325 | |
| SFT II 75, HSK80A, ER25 | M8-M20 ● 1/4"-3/4" | HSK80A | ER25 | SEAL DISK | 45.6 | 44 | 42 | 131 | 0.5 | 0.5 | 4175H8025 | |
| SFT II 75, HSK100A, ER25 | M8-M20 ● 1/4"-3/4" | HSK100A | ER25 | SEAL DISK | 45.6 | 44 | 42 | 133 | 0.5 | 0.5 | 4175H10025 | |
| SFT II 100, HSK63A, ER40 | M16-M30 ● 5/8"-1" | HSK63A | ER40 | SEAL DISK | 63.6 | 62 | 63 | 160 | 0.5 | 0.5 | 41100H6340 | |
| SFT II 100, HSK80A, ER40 | M16-M30 ● 5/8"-1" | HSK80A | ER40 | SEAL DISK | 63.6 | 62 | 63 | 161 | 0.5 | 0.5 | 41100H8040 | |
| SFT II 100, HSK100A, ER40 | M16-M30 ● 5/8"-1" | HSK100A | ER40 | SEAL DISK | 63.6 | 62 | 63 | 163 | 0.5 | 0.5 | 41100H10040 | |
