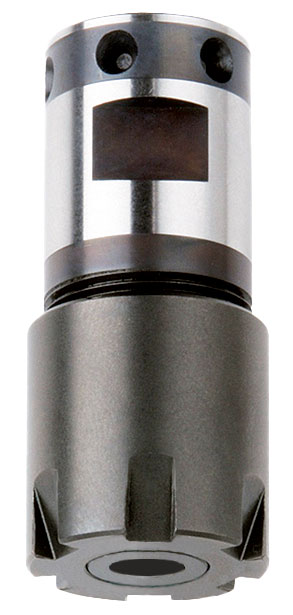

Quick Change Collet Chuck Adapters for use with ER Collets
(Dimensions in mm)
|
||||||||
|---|---|---|---|---|---|---|---|---|
| Description | Adapter Size | For Collet Size | Nut Type | d | D | L | Order Code | Quote |
| ER11 Adapter | Nr.0 | ER11 | STANDARD | 19 | 13 | 20 | 8138211N | |
| ER16 Adapter | Nr.1 | ER16 | MINI | 22 | 19 | 24 | 8208216 | |
| ER20 Adapter | Nr.1 | ER20 | MINI | 28 | 19 | 35 | 8218220 | |
| ER20 Adapter | Nr.1 | ER20 | STANDARD | 34 | 19 | 34 | 8118220N | |
| ER25 Adapter | Nr.2 | ER25 | MINI | 35 | 31 | 38 | 8288225 | |
| ER32 Adapter | Nr.2 | ER32 | STANDARD | 50 | 31 | 48 | 8288232 | |
| ER16 Adapter for IC | Nr.1 | ER16 | SEAL DISK MINI | 22 | 19 | 28 | 8208216S | |
| ER20 Adapter for IC | Nr. 1 | ER20 | SEAL DISK MINI | 28 | 19 | 40 | 8218220S | |
| ER20 Adapter for IC | Nr.1 | ER20 | SEAL DISK STANDARD | 34 | 19 | 39 | 8118220 | |
| ER25 Adapter for IC | Nr.2 | ER25 | SEAL DISK MINI | 35 | 31 | 43 | 8288225S | |
| ER32 Adapter for IC | Nr.2 | ER32 | SEAL DISK STANDARD | 50 | 31 | 53 | 8288232S | |
