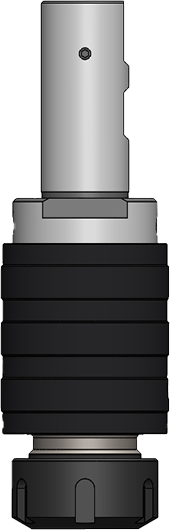

SM with Straight Shank and ER Collet
(Dimensions in mm)
|
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Description | Tap Sizes | SHANK | Collets | D | d | L | I | T | C | Order Code | Quote |
| SM2, 16mm, ER16 | M 1.4-M7 ● #0- 1/4" | 16mm | ER16 | 27 | 28 | 65 | 48 | 4.5 | 6 | 023216ER | |
| SM2, 5/8", ER16 | M 1.4-M7 ● #0- 1/4" | 5/8" | ER16 | 27 | 28 | 65 | 48 | 4.5 | 6 | 023262ER | |
| SM4, 20mm, ER20 | M3-M12 ● #6-1/2" | 20mm | ER20 | 38 | 34 | 74 | 50 | 7 | 7 | 023420ER | |
| SM4, 3/4", ER20 | M3-M12 ● #6-1/2" | 3/4" | ER20 | 38 | 34 | 74 | 48 | 7 | 7 | 023475ER | |
| SM6, 25mm, ER25 | M5-M18 ● #10- 3/4" | 25mm | ER25 | 48 | 42 | 94 | 56 | 11 | 11 | 023625ER | |
| SM6, 1", ER25 | M5-M18 ● #10- 3/4" | 1" | ER25 | 48 | 42 | 94 | 56 | 11 | 11 | 023610ER | |
