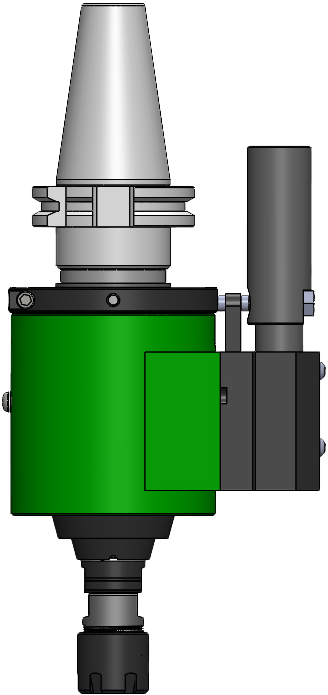

RCT50 Tapping Head with Modular Straight Shank with Internal Coolant.
RCT50 Tapping Head with Modular Straight Shank with Internal Coolant.
RCT50 Tapping Head with Modular Straight Shank with Internal Coolant.
(Dimensions in mm)
DescriptionTap SizesSHANKColletsNut TypeDdL1L2MAX RPMOrder Code Quote
RCT50, 25mm, ER16 M4-M12 ● #10-1/2" 25mm ER16 MINI SEAL DISK 80 22 155 97 2500 05502516
RCT50, 1", ER16 M4-M12 ● #10-1/2" 1" ER16 MINI SEAL DISK 80 22 155 97 2500 0550116
RCT50, 25mm, ER20 M4-M12 ● #10-1/2" 25mm ER20 MINI SEAL DISK 80 28 167 97 2300 05502520
RCT50, 1", ER20 M4-M12 ● #10-1/2" 1" ER20 MINI SEAL DISK 80 28 167 97 2300 0550120
RCT50 Tapping Head with Modular Straight Shank without Internal Coolant.
(Dimensions in mm)
DescriptionTap SizesSHANKColletsNut TypeDdL1L2MAX RPMOrder Code Quote
RCT50, 25mm, ER16 M4-M12 ● #10-1/2" 25mm ER16 MINI 80 22 152 97 2500 04502516
RCT50, 1", ER16 M4-M12 ● #10-1/2" 1" ER16 MINI 80 22 152 97 2500 0450116
RCT50, 25mm, ER20 M4-M12 ● #10-1/2" 25mm ER20 MINI 80 28 164 97 2300 04502520
RCT50, 1", ER20 M4-M12 ● #10-1/2" 1" ER20 MINI 80 28 164 97 2300 0450120
RCT50 Stop Arm Assembly
CENTER DISTANCEL3Order Code Quote
55 13 0550551
65 23 0550651
80 38 0550801
110 68 05501101
SELECT COLLETS

SELECT COLLETS
SELECT SEAL DISKS

SELECT SEAL DISKS
SELECT STOP BLOCK

SELECT STOP BLOCK
SELECT STEEP TAPER SHANK

SELECT STEEP TAPER SHANK
RDT25 Tapping Head with Modular Straight Shank without Internal Coolant
(Dimensions in mm)
DescriptionTap SizesSHANKColletsNut TypeDdL1L2MAX RPMOrder Code Quote
RDT25, 25mm, ER11 M2-M6 ● #4-1/4" 25mm ER11 STANDARD 57 19 106 79 4000 39252511
RDT25, 1", ER11 M2-M6 ● #4-1/4" 1" ER11 STANDARD 57 19 106 79 4000 3925111
Stop Arm Assembly for RDT25
CENTER DISTANCEL3Order Code Quote
55 13 3925551
65 23 3925651
80 38 3925801
110 68 39251101
SELECT COLLETS

SELECT COLLETS
SELECT STOP BLOCK

SELECT STOP BLOCK
SELECT STEEP TAPER SHANK

SELECT STEEP TAPER SHANK
