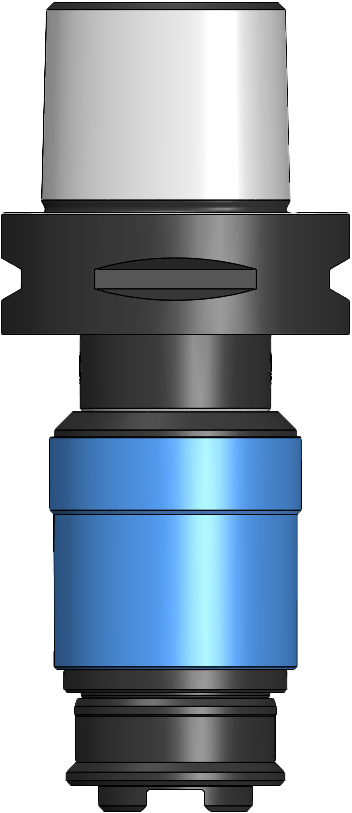

SynchroFlex® II Tap Holder with Tapmatic Capto Shank, Quick-Change, and Internal Coolant.
(Dimensions in mm)
|
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Description | Tap Sizes | SHANK | Adapter | D1 | D | d | L | T | C | Order Code | Quote |
| SFT II 50, C4, QC | M4-M12 ● #8-1/2" | C4 | Nr.1 | 36.3 | 34.6 | 35 | 89 | 0.5 | 0.5 | 4150C4QC | |
| SFT II 50, C5, QC | M4-M12 ● #8-1/2" | C5 | Nr.1 | 36.3 | 34.6 | 35 | 90 | 0.5 | 0.5 | 4150C5QC | |
| SFT II 50, C6, QC | M4-M12 ● #8-1/2" | C6 | Nr.1 | 36.3 | 34.6 | 35 | 92 | 0.5 | 0.5 | 4150C6QC | |
| SFT II 50, C8, QC | M4-M12 ● #8-1/2" | C8 | Nr.1 | 36.3 | 34.6 | 35 | 99 | 0.5 | 0.5 | 4150C8QC | |
| SFT II 75, C5, QC | M8-M16 ● 1/4"-5/8" | C5 | Nr.1 | 45.6 | 44 | 40 | 106 | 0.5 | 0.5 | 4175C5QC | |
| SFT II 75, C6, QC | M8-M16 ● 1/4"-5/8" | C6 | Nr.1 | 45.6 | 44 | 40 | 108 | 0.5 | 0.5 | 4175C6QC | |
| SFT II 75, C8, QC | M8-M16 ● 1/4"-5/8" | C8 | Nr.1 | 45.6 | 44 | 40 | 115 | 0.5 | 0.5 | 4175C8QC | |
