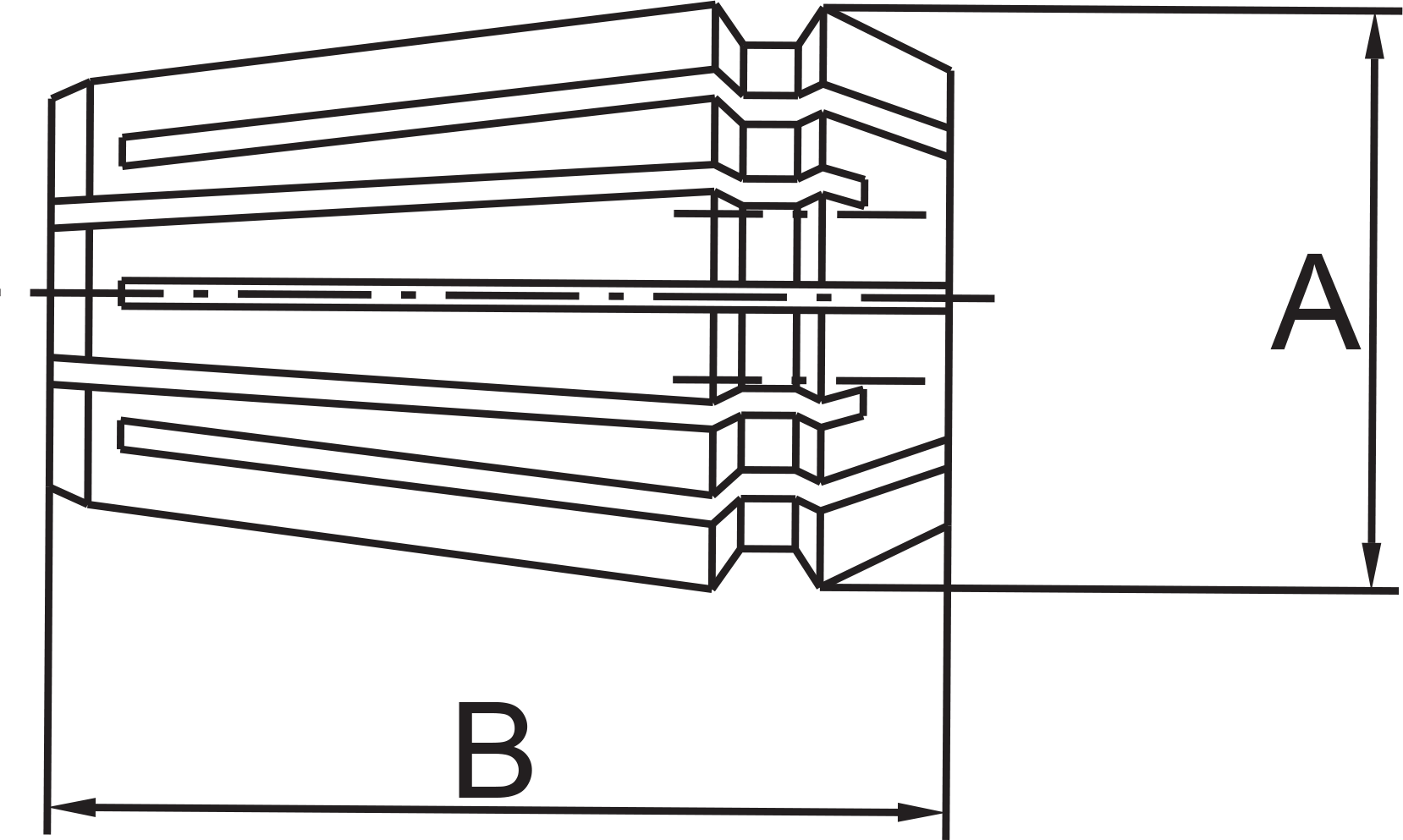

Steel collets ER acc. to DIN 6499B without inner square
(Dimensions in mm)
|
|||||
|---|---|---|---|---|---|
| Description | Clamping capacity | A | B | Order Code | Quote |
| ER8 | 1.5-1.0 | 8.5 | 13.6 | 20910 | |
| ER8 | 2.0-1.5 | 8.5 | 13.6 | 20911 | |
| ER8 | 2.5-2.0 | 8.5 | 13.6 | 20912 | |
| ER8 | 3.0-2.5 | 8.5 | 13.6 | 20913 | |
| ER8 | 3.5-3.0 | 8.5 | 13.6 | 20915 | |
| ER8 | 4.0-3.5 | 8.5 | 13.6 | 20916 | |
| ER8 | 4.5-4.0 | 8.5 | 13.6 | 20918 | |
| ER11 | 3.0-2.5 | 11.5 | 18.0 | 20929 | |
| ER11 | 3.5-3.0 | 11.5 | 18.0 | 20930 | |
| ER11 | 4.0-3.5 | 11.5 | 18.0 | 20931 | |
| ER11 | 4.5-4.0 | 11.5 | 18.0 | 20932 | |
| ER11 | 5.0-4.5 | 11.5 | 18.0 | 20934 | |
| ER11 | 5.5-5.0 | 11.5 | 18.0 | 20933 | |
| ER11 | 6.0-5.5 | 11.5 | 18.0 | 20935 | |
| ER11 | 6.5-6.0 | 11.5 | 18.0 | 20936 | |
| ER16 | 4.0-3.0 | 17.0 | 27.5 | 20940 | |
| ER16 | 5.0-4.0 | 17.0 | 27.5 | 20943 | |
| ER16 | 6.0-5.0 | 17.0 | 27.5 | 20945 | |
| ER16 | 7.0-6.0 | 17.0 | 27.5 | 20946 | |
| ER16 | 8.0-7.0 | 17.0 | 27.5 | 20949 | |
| ER16 | 9.0-8.0 | 17.0 | 27.5 | 20950 | |
| ER16 | 10.0-9.0 | 17.0 | 27.5 | 20953 | |
| ER20 | 4.0-3.0 | 21.0 | 31.5 | 20983 | |
| ER20 | 5.0-4.0 | 21.0 | 31.5 | 20984 | |
| ER20 | 6.0-5.0 | 21.0 | 31.5 | 20985 | |
| ER20 | 7.0-6.0 | 21.0 | 31.5 | 20977 | |
| ER20 | 8.0-7.0 | 21.0 | 31.5 | 20986 | |
| ER20 | 9.0-8.0 | 21.0 | 31.5 | 20978 | |
| ER20 | 10.0-9.0 | 21.0 | 31.5 | 20979 | |
| ER20 | 11.0-10.0 | 21.0 | 31.5 | 20980 | |
| ER20 | 12.0-11.0 | 21.0 | 31.5 | 20981 | |
| ER20 | 13.0-12.0 | 21.0 | 31.5 | 20982 | |
| ER25 | 5.0-4.0 | 26.0 | 34.0 | 20963 | |
| ER25 | 7.0-6.0 | 26.0 | 34.0 | 20965 | |
| ER25 | 9.0-8.0 | 26.0 | 34.0 | 20968 | |
| ER25 | 10.0-9.0 | 26.0 | 34.0 | 20969 | |
| ER25 | 11.0-10.0 | 26.0 | 34.0 | 20970 | |
| ER25 | 12.0-11.0 | 26.0 | 34.0 | 20971 | |
| ER25 | 13.0-12.0 | 26.0 | 34.0 | 20973 | |
| ER25 | 14.0-13.0 | 26.0 | 34.0 | 20974 | |
| ER25 | 15.0-14.0 | 26.0 | 34.0 | 20975 | |
| ER25 | 16.0-15.0 | 26.0 | 34.0 | 20976 | |
