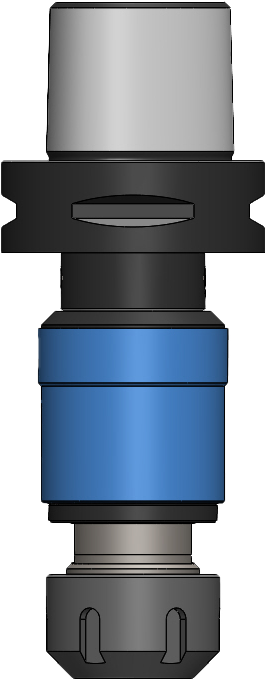

SynchroFlex® II Tap Holder with Tapmatic Capto Shank, ER Collet, and Internal Coolant.
(Dimensions in mm)
|
||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Description | Tap Sizes | SHANK | Collets | Nut Type | D1 | D | d | L | T | C | Order Code | Quote |
| SFT II 50, C4, ER20 | M4-M12 ● #8-1/2" | C4 | ER20 | SEAL DISK | 36.3 | 34.6 | 34 | 102 | 0.5 | 0.5 | 4150C420 | |
| SFT II 50, C5, ER20 | M4-M12 ● #8-1/2" | C5 | ER20 | SEAL DISK | 36.3 | 34.6 | 34 | 103 | 0.5 | 0.5 | 4150C520 | |
| SFT II 50, C6, ER20 | M4-M12 ● #8-1/2" | C6 | ER20 | SEAL DISK | 36.3 | 34.6 | 34 | 105 | 0.5 | 0.5 | 4150C620 | |
| SFT II 50, C8, ER20 | M4-M12 ● #8-1/2" | C8 | ER20 | SEAL DISK | 36.3 | 34.6 | 34 | 112 | 0.5 | 0.5 | 4150C820 | |
| SFT II 75, C5, ER25 | M8-M20 ● 1/4"-3/4" | C5 | ER25 | SEAL DISK | 45.6 | 44 | 42 | 122 | 0.5 | 0.5 | 4175C525 | |
| SFT II 75, C6, ER25 | M8-M20 ● 1/4"-3/4" | C6 | ER25 | SEAL DISK | 45.6 | 44 | 42 | 124 | 0.5 | 0.5 | 4175C625 | |
| SFT II 75, C8, ER25 | M8-M20 ● 1/4"-3/4" | C8 | ER25 | SEAL DISK | 45.6 | 44 | 42 | 131 | 0.5 | 0.5 | 4175C825 | |
| SFT II 100, C6, ER40 | M16-M30 ● 5/8"-1" | C6 | ER40 | SEAL DISK | 63.6 | 62 | 63 | 154 | 0.5 | 0.5 | 41100C640 | |
| SFT II 100, C8, ER40 | M16-M30 ● 5/8"-1" | C8 | ER40 | SEAL DISK | 63.6 | 62 | 63 | 161 | 0.5 | 0.5 | 41100C820 | |
