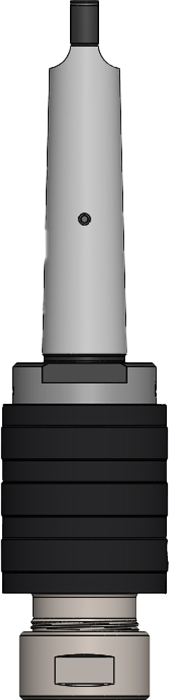

SM with Morse Taper Shank and Rubber-Flex Collet
(Dimensions in mm)
|
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Description | Tap Sizes | SHANK | Collets | D | d | L | T | C | Order Code | Quote |
| SM2, No.2 Morse, 21 Series | M1.4-M7 ● #0-1/4" | No.2 Morse | 21 Series | 27 | 19 | 53 | 4.5 | 6 | 023202 | |
| SM4, No.2 Morse, 22 Series | M3-M12 ● #6-1/2" | No.2 Morse | 22 Series | 38 | 27 | 71 | 7 | 7 | 023402 | |
| SM6, No.3 Morse, 24 Series | M5-M18 ● #10-3/4" | No.3 Morse | 24 Series | 48 | 37 | 96 | 11 | 11 | 023603 | |
| SM8, No. 3 Morse, 26 Series | M10-M30 ● 1/2"-1 1/8" | No. 3 Morse | 26 Series | 63.5 | 57 | 128 | 17 | 17 | 023803 | |
| SM8, No.4 Morse, 26 Series | M10-M30 ● 1/2"-1 1/8" | No.4 Morse | 26 Series | 63.5 | 57 | 128 | 17 | 17 | 023804 | |
